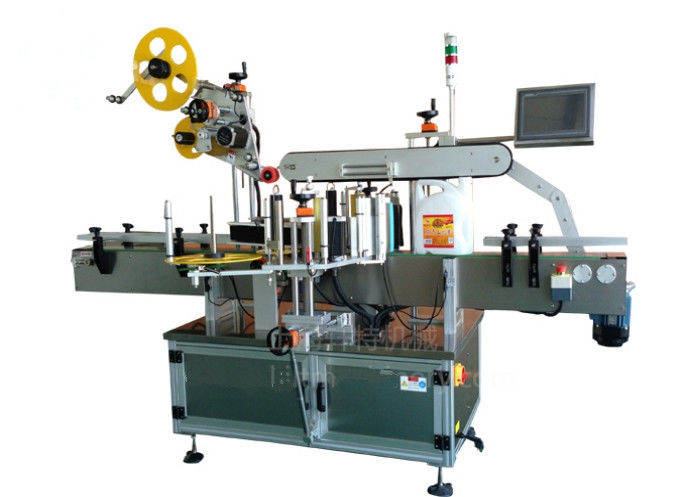

Automatic bottle top surface and double sides labeling machine
Applying:
FRS-TDPMA Top surface and double sides sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Features:
Imported electric elements, stable performance, low failure rate;
Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;
Can be operated alone or contract with the production line;
No bottle not labeling, automatic alarm when leakage and without label.
The whole machine use material S304 stainless steel and anodized senior aluminum alloy material ,with high corrosion resistance and never rust;
The bottle separated by separate bottle device transported to the conveyor,move stably through the press bottle device;
When the sensor test the bottle, send signal to PLC;
The PLC received the signal and send to step motor .
The step motor driving the outing label motor to send label.
The bottle transported to the brush label device, fix the label on the bottle more smooth,then to the next process.
Specially for labeling the paper box / carton top surface and side surface
Parameter:
| Production |
30-100 bottle/min (Step motor) |
| Labeling speed |
≤40m/min |
| Labeling specification |
Glassine paper, transparent and opaque |
| The application of object |
Customize
|
| The application of label |
Height 20-70mm Length 25-120mm |
| The inner diameter of label plate |
Min. 76mm |
| The outer diameter of label plate |
Max. 350mm |
| Driving mode |
Servo or step motor |
| The power of motor |
1700w |
| Size appearance |
2900×1350×1500mm |
| Machine weight |
300kg |
| Voltage |
AC 220V 50/60Hz Single phase (according to the voltage in client country) |
We can offer you different function adhesive labeling machine
Our Workshop:
Competitive advantage:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Country:
USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)
