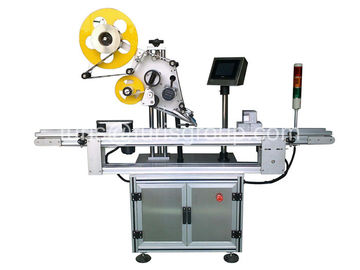

Automatic Sticker Labeling Machine
Applying:
FRS-DPMA single-label plane labeling machine is our upgraded product, it has strong adaptability, widely used in labeling cartons and film bags of different specifications in food, chemical, medical, cosmetics, electronics, hardware, auto parts, stationery and other industries.
Features:
1. Imported electric elements, stable performance, low failure rate;
2. Using touch-screen man-machine interface operating system, simple and efficient;
3. Upgraded disc label station design, also can suit for conical and flask bottle.
4. Screw adjustment to suppress body movements accurately
5. Synchronization chain mechanism ensure labeling smooth and precise calibration.
6. Advanced technology of pneumatic coding system, print the batch number and expiry date clearly.
7. Transmission-type roll label device, make sure the label attached more firmly;
8. Butterfly designed station, machine’s angle can be adjusted to adapt different bottle's shape and size.
9. Adopt mature technology PLC control system, operation is stable and high-speed;
10. Adopting photoelectric detection, PLC control system, software operation, conveyor belt, labeling accurately and high precision;
11. Can be operated alone or contract with the production line;
12. No bottle not labeling, automatic alarm when achieve leakage label.
13. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust;
Parameter:
| Production |
30-60 bottle/min (Step motor) |
| Labeling speed |
≤40m/min |
| Labeling specification |
Glassine paper, transparent and opaque |
| Printer to use air |
5kg/cm² |
| The application of bottle |
Outer diameter 16-150mm Height 15-300mm |
| The application of label |
Height 20-70mm Length 25-120mm |
| The inner diameter of label plate |
Min. 76mm |
| The outer diameter of label plate |
Max. 350mm |
| Driving mode |
Servo or step motor |
| The power of motor |
700w |
| Size appearance |
2200×900×1600mm |
| Machine weight |
250kg |
| Voltage |
AC 220V 50/60Hz Single phase (according to the voltage in client country) |
We can offer you different function adhesive labeling machine
Competitive advantage:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Country:
USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)
