Bath Bomb Steamers Shampoo Press Machine 45T/100T/200T mold shape and size ay customer design
Applying:
Automatic powder press machine is mainly used for press food, tea, ceramic, metallurgy, fertilizer pellets,ore material, disinfectant, detergent, magnetic products, bath bomb,etc
Features:

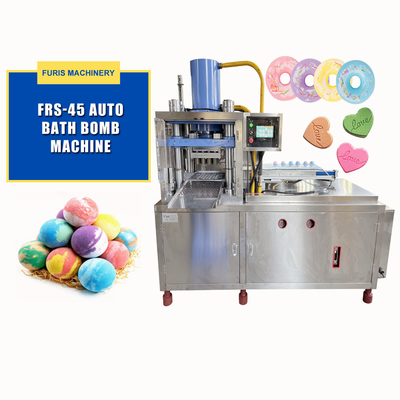

FRS-45 Full auto hydraulic press machine
Suit for press wet and dry powder both.
Compact dimension.simple operation,easy maintain.multy function.
Machine pressure can reach 45T (pressure can customize),the pressure can be adjusted in the touch screen
This machine can reach multi-cavity mould pressing, keep the same pressure, greatly improve production efficiency.
Adopts computer system control PLC control,touch screen operation, make the machine operation very easy.
Can work in automatic and manual two kind model
With auto stop function when the hand put into the machine mould
The machine cover is stainless steel,no rust for long time use.
Press time can be adjusted in the touch screen.
Adopt the imported hydraulic system make sure the machine can work stable and has long work life.
The process is full automatic,auto feeding powder forming bath bomb and push the bath bomb out from machine.
Through change the mould,the machine can press different shape and different size bath bomb.Can add extra feeder to make two color bath bomb.
New generation feeding bath bomb press,the feeder feeding the powder into mold with smooth and fast,it has big volume,one time can load 80L powder,with stir device, no stuck the hopper when feeding the wet powder.
Parameter:
| Model |
FRS-2 |
FRS-4 |
FRS-5 |
FRS-8 |
FRS-45 |
Model |
FRS-590 |
FRS-150 |
| Feeder volume |
/ |
/ |
10L |
80L |
80L |
Max film size |
<590mm |
15mm width two layers |
| Max pressure |
250kg |
500KG |
5Ton(the pressure customize) |
10Ton(the pressure customize) |
45Ton(the pressure can customize) |
packing size |
L:100mm-450mm w:10mm-200mm |
Φ30-Φ150mm |
| Max press bath bomb size |
8cm |
8cm |
15cm(customize) |
10cm(customize) |
20cm(customize) |
Max packing bath bomb |
8cm customize |
150mm customize |
| Capacity |
240pcs per hour |
420pcs per hour |
720pcs per hour(according to the bath bomb size 1.75'') |
5870pcs per hour(according to the bath bomb size 1.75'') |
5870pcs per hour(according to the bath bomb size 1.75'') |
Capacity |
Max200pcs/min |
Max 200pcs/min |
| Power |
/ |
/ |
50w |
3.5kw |
5kw |
power |
20kw |
11kw |
| Hydraulic oil |
/ |
/ |
46# |
46# |
46# |
Film type |
POF |
PVC PE |
| Air compressor |
small |
small |
small |
small |
small |
Air compressor |
no need |
no need |
| Cylinder volume |
|
|
50L |
100L |
100L |
|
|
|
| Cooling type |
|
|
air blow cooling |
air blow cooling |
air blow cooling |
|
|
|
| Machine weight |
20kg |
25kg |
200kg |
800kg |
1500kg |
Machine weight |
1200kg |
1000kg |
| Machine size |
40*10*50mm |
40*40*50mm |
700*650*1800mm |
1300*1650*1800mm |
1500*1000*1800mm |
Machine size |
7500*1170*1500mm |
4000*1000*2000mm |
FAQ:
Q: Why can't form the bath bomb well use your machine?
A: Most new customers don't know make the bath bomb need use the citric acid powder,they buy the citric acid granule from market no grinding to powder.
Q: Are you a factory or a trading company?
A: We have own factory manufacturing pharma machine and packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.before ship the machine,we will let the machine run one week in our factory.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments.Pay 30%deposit after when finish the machine you can pay the balance before shipping.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:How is your machine quality?
More than 15 years manufacturing experience,with rich experience engineer and good CNC machine to make the with machine stable
performance and high quality ,with good quality and competitive price let our machines with good comment from our customers,now
our machines mainly export to north American and western Europe.
Q:How is the machine guarantee and after service?
One year guarantee,in one year,if the spare parts break,we can send the new spare parts for free but the customer need pay the express fee.
Q:How is the after service?
We have several technicians who gets passport ready to travel all over world to offer service to you.have 24hours hot line for Technical Support.We get 18hours internet line for technical support. Video camera in workshop to help you adjust and solve machine problem in working situation.We have many agents can offer the technical support in local place all over the world.
Our advantages
1. High quality + Economical Solution
Furis Group with China technology support match up your high quality requirements.
Furis Group economical price can provide you better budget control.
Furis Group strict quality control with ISO 9001 certification CE certification and other qualification can guarantee you avoiding any risk in machine selection or project implementation.
2. Professional Turnkey Project
Furis Group GMP experts and validation engineers can guide your project and documents match up the WHO GMP.EU GMP USA,etc
FRS factory general planning experts can ensure your project not only quality in all aspects,but also cost efficiency flexibility and expandability and security.
Furis Group professional designing and experienced engineering team can support your project optimal implementation saving labor time and cost.
3. One-stop Technical Service
Furis Group with worldwide partners can provide you current technology and know how of machine project validation and production.
FRS Mechanical and electrical engineers can make custom-made design to match up user's requirement specification.
and manufacturing according to European standard.
HM Energetic and professional team can provide you effectively one-stop technical service from sample trial testing
FAT,installation commissioning,SAT,training to documentation and validation.
Furis Group offer manual semi auto full auto bath bomb press machine and full auto bath bomb wrap machine to meet different customer with different capacity inquiry.Our machines mainly export to the Malaysia, United Arab Emirates, Saudi Arabia,India,United Kingdom, Poland, Italy, Spain, New Zealand, Thailand, South Korea, Belgium, France, Denmark, Australia,Hungary,Switzerland, Czech Republic, Germany, Latvia, Russia, Canada, United States more than 20 country.Welcome to OEM and distribute our machine in local place
